Brown Davis Long Range Auxiliary Fuel (81 ltr)Tank Land Cruiser / Prado 250 – 2024-Present (NEW EXHAUST SECTION INCLUDED)
€2.998,00 €3.567,62 Incl Tax
TOYOTA LANDCRUISER PRADO 250
81 LITRE AUXILIARY LONG RANGE FUEL TANK

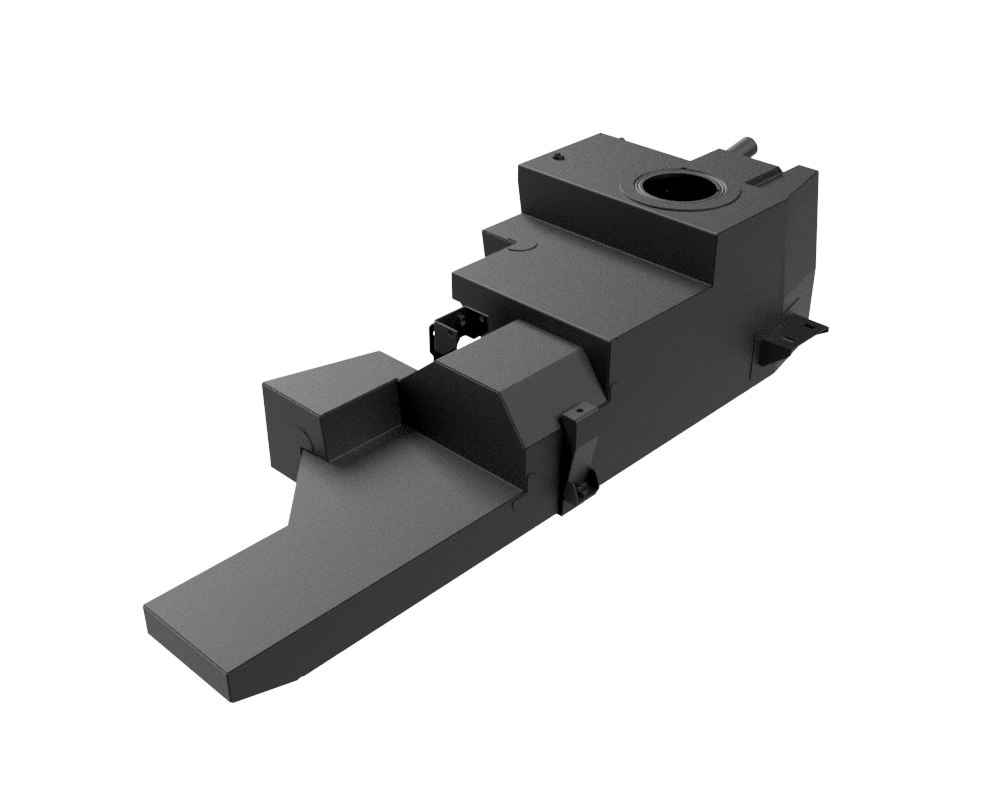

Brown Davis Releases New 81-Litre Long Range Auxiliary Fuel Tank for the Land Cruiser / Prado 250
Brown Davis has officially launched its brand-new 81-litre long range auxiliary fuel tank for the all-new Land Cruiser / Prado 250, delivering a massive upgrade for owners who demand serious touring and towing capability. When combined with the vehicle’s standard 80-litre main tank, the Land Cruiser’s / Prado's 250total fuel capacity skyrockets to an impressive 161 litres—more than double the factory capacity.
For long-distance travellers, off-road tourers, and anyone towing heavy trailers, this is a game-changing improvement. The extended range means fewer fuel stops, increased flexibility in remote areas, and the peace of mind that comes with carrying significantly more fuel onboard.
Clever Engineering and Complete Hardware Integration
To accommodate the 81-litre tank, Brown Davis includes a new exhaust section, designed to provide the necessary clearance under the vehicle while maintaining OEM-level fit and durability. All required hardware is supplied, ensuring a clean and straightforward installation.
Fuel transfer is just as easy. With a simple press of a button, the auxiliary tank’s electric transfer pump sends fuel directly into the main tank. Everything needed—pump, wiring, switch, hoses, and fittings—is included in the kit.
For seamless refuelling, Brown Davis integrates a T-piece filler system, which fills both the main tank and auxiliary tank simultaneously from the standard filler point.
Specifications
PART NUMBER: LGX550A1
TANK TYPE: AUXILIARY
CAPACITY: 81 LITRE
FILLER POINT: STANDARD LOCATION – T PIECE INTO AUXILIARY TANK
FUEL SUPPLY METHOD: TRANSFERS TO MAIN TANK
TANK LOCATION: DOWN PASSENGER SIDE
FITTING TIME: 6 hour/s
MODIFICATIONS: NEW CENTER SECTION OF EXHUAST SUPPLIED
Fuel Feed System
FUEL TRANSFER SYSTEM
This system is designed to pump the fuel from the Brown Davis auxiliary fuel tank into the vehicles standard fuel tank. At the flick of a switch fuel will be pumped into your vehicles standard tank to then be feed to the engine. An LED gauge is supplied to show driver the fuel level of the auxiliary fuel tank at all times. When the auxiliary tank becomes empty an automatic alarm will sound to tell driver to switch pump system off. This prevents pump from continuously running which can course pump failure. All parts and hardware for install are supplied

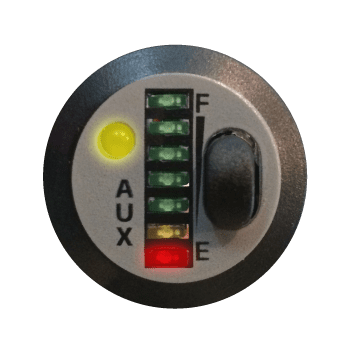

Fuel pumps burning out is now a thing of the past. Brown Davis has developed a new auxiliary fuel tank gauge, switch and buzzer unit to be supplied with most Brown Davis auxiliary transfer fuel tanks. the small unit is no bigger then a 10 cent coin and can be mounted nicely in vehicles dashes.

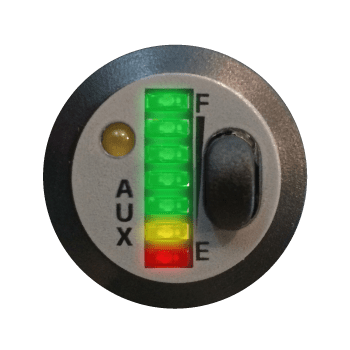

TANK FULL
FUEL NOT TRANSFERRING
The LED Gauge will show the auxiliary tank’s fuel level at all times, even when the pump is not running.

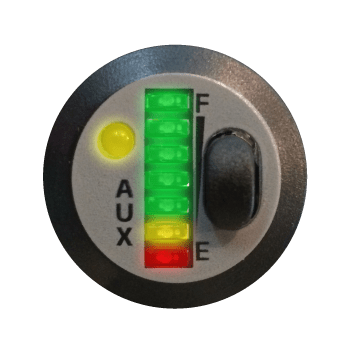

TANK FULL
FUEL TRANSFERRING
When the button is pressed, the fuel pump will commence transferring fuel from the auxiliary fuel tank to your vehicles main fuel tank. The round yellow LED light indicates that the pump is running.

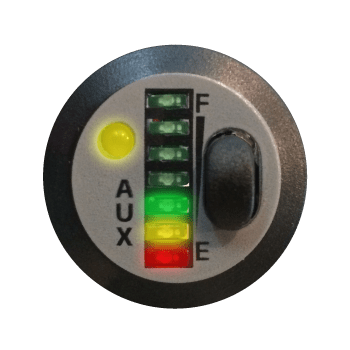

TANK HALF FULL
FUEL TRANSFERRING
As fuel is being transferred from the auxiliary to the main fuel tank, the LED light will indicate the fuel level remaining within the Brown Davis auxiliary fuel tank. At any stage, the fuel pump activator button on the gauge can be pressed to stop the transfer of fuel.
TANK EMPTY
FUEL TRANSFERRING
When the auxiliary fuel tank is empty, a buzzer will sound prompting the driver to turn the fuel pump off. This is designed to prevent the fuel pump from any damage and increase its longevity.
Fuel Capacity and Driving Range Comparison
| Fuel Consumption (12.3L/100km) | Percentage Increase Brown Davis Long Range Fuel Tank | |
|---|---|---|
| 80 Litre Standard Tank | 650km | – |
| 161L Total – 81 Litre Brown Davis Aux Tank + 80 Litre standard tank | 1309km | 101% |
101% INCREASE!
Whilst every effort has been made to ensure these figures are accurate vehicles may vary. Vehicles should never be pushed to the point of running out of fuel as it may harm your vehicles engine.
Compatibility
Confirmed fitment
Models
Optional Upgrades
TWIN FILLER NECK
Comes standard with all new orders. Optional twin filler neck upgrade for those with Brown Davis Auxiliary Tanks installed. Enables the use of high flow diesel pumps and allows user to choose whether to fill both tanks or just fill the main tank, leaving the rear empty until needed.
Aftermarket Accessories
Suspension
Confident fitment with all suspension lifts, GVM upgrades and air-bag kits
International vehicles
Confirmed fitment
Confident fitment with world spec vehicles
Rear Bars
Fitment not yet confirmed with Cruiser Company rear bar. Please contact us to enquire.
Step by Step DIY Instructions
The Brown Davis Toyota Land Cruiser / Prado 250 (2024 – Present) tank comes with step by step instructions that walk you through every step of the install.
Warranty and Support
For total peace of mind Brown Davis offers a 3-Year Manufacturer Warranty on all its fuel tanks.
| Weight | 45 kg |
|---|---|
| Dimensions | 115 × 38 × 67 cm |
